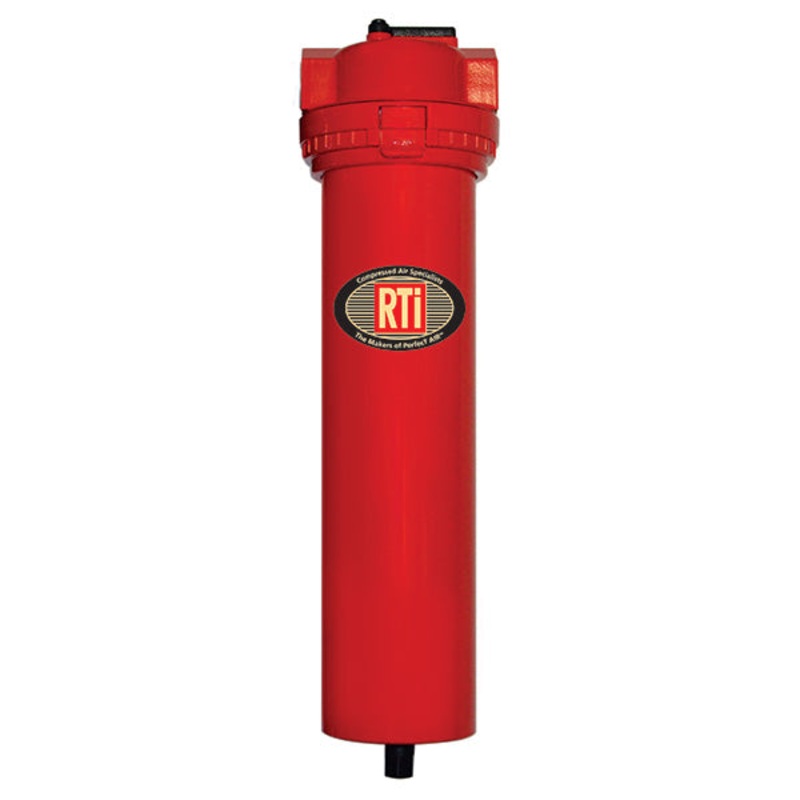

RTI C106 Coalescer, 0.01 Micron, 3/4 Inlet/Outlet

Reading Technologies RTI C106 Air Compressor Coalescers, 0.01 Micron, 3/4″ Inlet/Outlet.

Reading Technologies Inc C106 Coalescer 3/4″- The Best Filter Product on the Market with Cleaner Compressed Air with No Oil to Your Applications. A Simple Design Requires No Tools for Maintenance with Easy Service of Elements. This Product has an Extremely Long Element Life and Removes Water, Dirt and Oil as well as Compressor Oils from the Air.

Features:

• Equipped with 2 Automatic Drains
• Automatic Drains with Manual Override
• Quick Disconnect Clamp Ring Design
• Spin-on/Spin-off Elements
• Heavy Duty Metal Bowl Construction
• 0.01 micron @ 99.99998% Oil Removal
• Efficiency
• Differential Pressure Indicator
• Applications:
• Mainline Filtration Systems
• After Filter for Refrigerated Dryer
• After Filter for Desiccant Dryer
• Pre Filter for Desiccant Dryer8″D

Perfect for paint booths and prep stations. Removes dirt, water and oil.
Patented “Inverse Flow”design. Patented activated carbon first stage removes oil to 0.003 ppm. 2nd stage final filtration to 0.01 micron at 99.99998% efficiency.

An extremely long element life and easy, tool-free servicing make Reading Technologies Stealth filters an optimum choice for your body shop and MADE in USA!

Reading Technologies, Inc. is in compliance with the State of California’s PROP 65 law for warning consumers that the product contains chemicals on the State of California’s PROP 65 list

Specifications

Part Number: C106

• Inlet Size:3/4 in. NPT
• Inlet Attachment:Female threads
• Outlet Size:3/4 in. NPT
• Outlet Attachment:Female threads
• Maximum Pressure (psi):150 psi
• Maximum CFM:90
• Bowl Guard:No
• Sight Glass:No
• Automatic Overnight Drain:Yes

TP Tools Tip: For best results, place water filters as far away from the compressor as possible (at least 25 ft). This allows the air to cool and condense so water can be removed efficiently.

Applications

• Air Tools, Sand Blasting, Sanding Impacts, Buffing
• Ideal for Mechanical Section of Shop

Documents

Flyer RTI C106 Coalescer Filter
