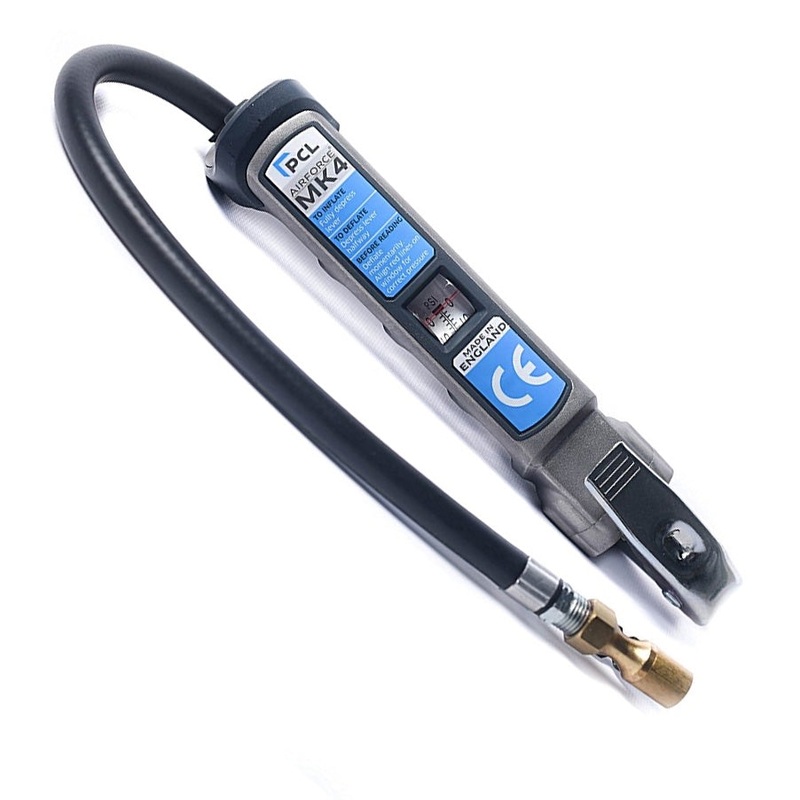

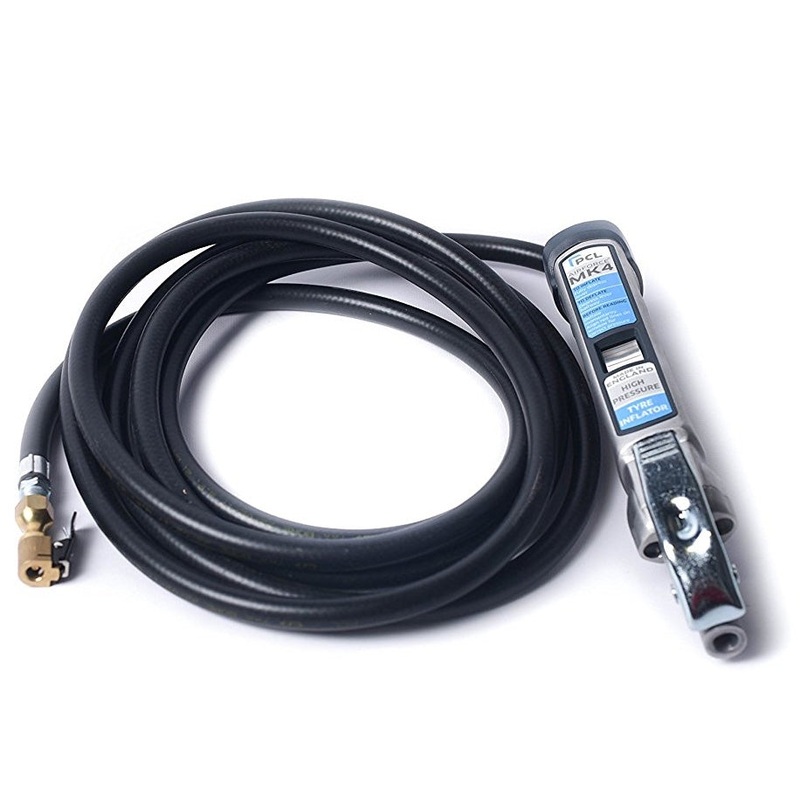

PCL AFG5A092 Truck Tire Inflator 6′ Hose Single Lock-On Chuck

PCL AFG5A092 Truck Tire Inflator, 6′ Hose Single Lock-On Chuck

Part Number: AFG5A092

• New Viewing Window– Larger window gives 20% greater field of viewing
• Lighter Weight– Gauge body weighs 2lb, less work strain and easier for repetitive use
• Biomorphic Shape– Ergonomic, easier to use and less prone to damage when dropped
• New Valve Mechanism– Simplified 2 stage mechanism design prevents user having to “push” against full line pressure on deflate preventing fatigue
• New Piston & Seal Design– New design, less drag, reduced friction & less movement inertia means no internal corrosion, no sticking and no skewing of accuracy
• Accuracy Standards– Tested to over 400,000 cycles at 100% accuracy, meets EC 86/217 and compliant with EN12645:2014

• Extremely accurate with testing standards greater than +/- 2 psi (complies with EC Directive 86/217)
• Each unit comes complete with its own individual testing calibration certificate
• Each unit is serialized with date code tied to manufacturing date
• Compliant to the current California Tire Pressure Proposal
• In a side by side comparison – 30% faster than anything on the market today
• Inflate and deflate air pressure while staying engaged on the tire valve stem
• Press the trigger all the way to inflate
• Press the trigger 1/2 way to deflate
• Release the trigger to get a reading
• Various Hose Lengths available
• Various Tire Chucks available
• Hose has male NPT threads to allow customer to change out connectors
• Can inflate tires up to 174 psi
• Larger capacity units can inflate up to 300 psi

Specifications

• Accuracy:Exceeds EC Directive 86/217
• Reading Accuracy:2 psi
• Max Inlet Pressure:232 psi
• Inflation Flow:18 cfm @ 190 psi supply
• Hose Length:6′
• Chuck Type:Single Lock-On
• Calibration:0 to 174 psi in 2 psi units
• Operating Temperature:14F to 140F (-10C to 60C)
• Storage Temperature:-22F to 176F (-30C to 80C)
• 100% Tested to 2 psi Standard

• Compliance:EC Directive 86/217 and BS EN 12645:1999

• Length:10.4″
• Width:1.9″
• Weight:1.34 lbs

Shipping Weight in Lbs:4
